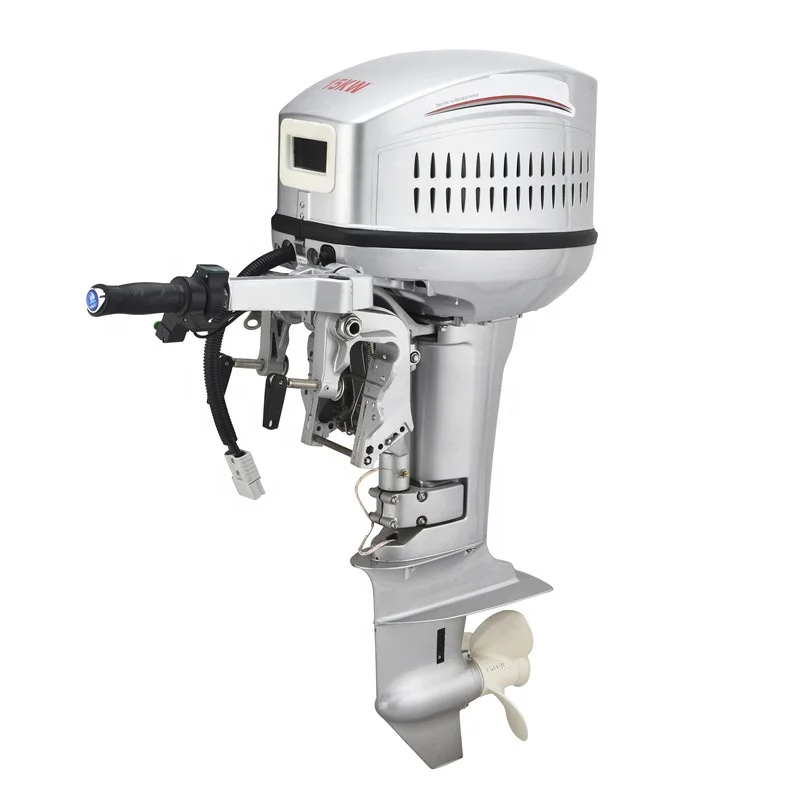

Tiller Control / Remote Control 96v 20hp Electric Outboard Motor
Dual control, singular power. Our 96V, 20HP electric outboard motor delivers robust, gas-like performance with the flexibility of two intuitive control options. Choose between responsive tiller handling or versatile remote operation for a clean, quiet, and powerful boating experience.
Key Features:
-
Dual Control Flexibility: Includes both a direct-connect Tiller Handle for responsive, classic steering and a wireless Remote Control for convenient operation from anywhere onboard.
-
High-Performance 20HP Power: Provides strong and reliable thrust, making it a seamless replacement for traditional mid-size gas outboards.
-
Efficient 96V System: Ensures superior energy efficiency and extended range, perfect for longer trips or demanding use.
-
Quiet & Zero-Emission: Runs silently with zero fumes, fuel, or pollution—ideal for fishing and eco-conscious cruising.
-
Low Maintenance Design: Brushless motor technology offers exceptional reliability with minimal upkeep.
Perfect For: Anglers, day cruisers, and commercial operators needing a powerful, clean, and versatile primary motor for boats 18-28 ft.
Package Includes: Motor, Tiller Handle, and Wireless Remote Control system. (96V Battery & Charger sold separately).
Tiller control / Remote control 96v 20hp electric outboard motor
This is 96V brushless DC electric outboard motor
Water cooled type,
short shaft is 44cm, (Default this)
Long shaft is 58cm
you can prepare any 96V battery is ok.
Water cooled, Tiller control / Remote control are optional.


|
Name |
Tiller control / Remote control 96v 20hp electric outboard motor |
|
Motor type |
water cooled Electric Brushless Motor |
|
Voltage |
DC96V |
|
Power |
15kw |
|
Max. current |
150A |
|
Undervoltage Protection (V) |
68 |
|
Overvoltage Protection (V) |
120 |
|
Rotating speed |
5500r/min |
|
Operating speed |
20-25km |
|
Gear |
R/D |
|
Gear box capacity |
250ml |
|
Recommended Gear oil |
Hypoid gear oil SAE #90 |
|
Cruise function |
yes |
|
Adaptable battery voltage range (V) |
72- 108 |
|
Recommend battery |
96V/200AH |
|
N.W./G.W. |
51/55 KGS |
|
Packing size |
1200*730*430 mm |
|
The duration of 96V/200A battery is 1.2H working on the 5.2m aluminum boat with loading 900KG,
the max speed is 35KM/H (Max. current for batteries is 300A)
|
|
